Key switch and light mount…

Last night I had some time in the garage and I made a mount for the key switch, oil pressure indicator light and neutral indicator light. The bike did not have oil pressure or neutral indicators. Since I am adding them I needed somewhere to put them.

Mocked up the basic shape with a piece of cardboard first. Made sure things would fit and it would work on the bike.

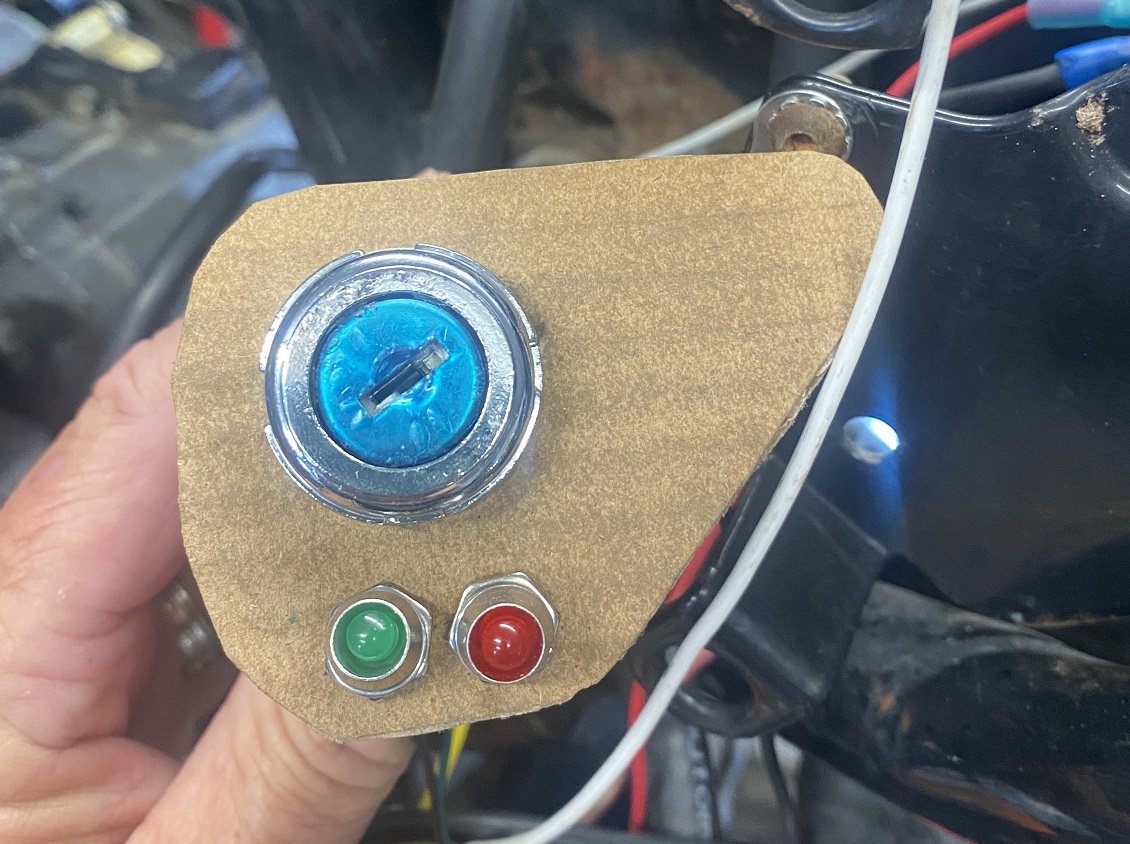

Key switch and indicator light mount mocked up on cardboard

Then used the cardboard as a template to cut the mount out of 1/8″ 6061 aluminum.

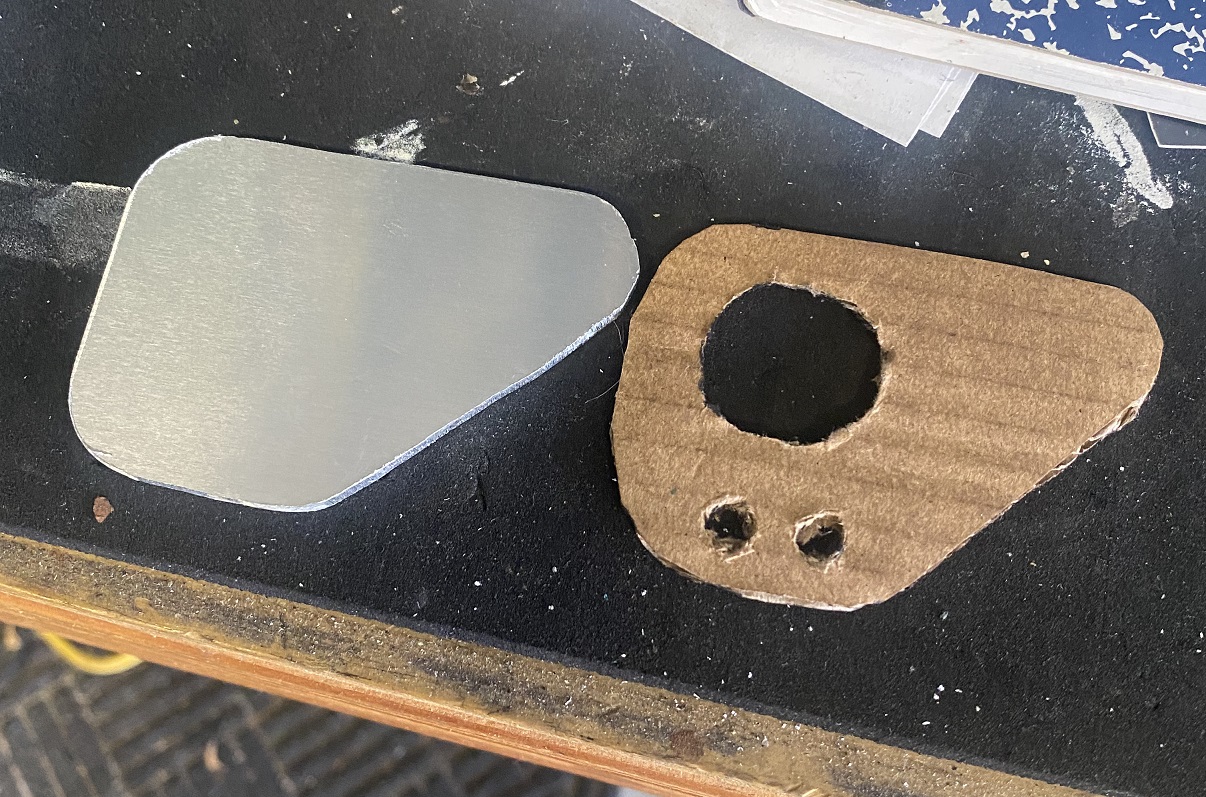

Mount cut from cardboard template

It’ll work…

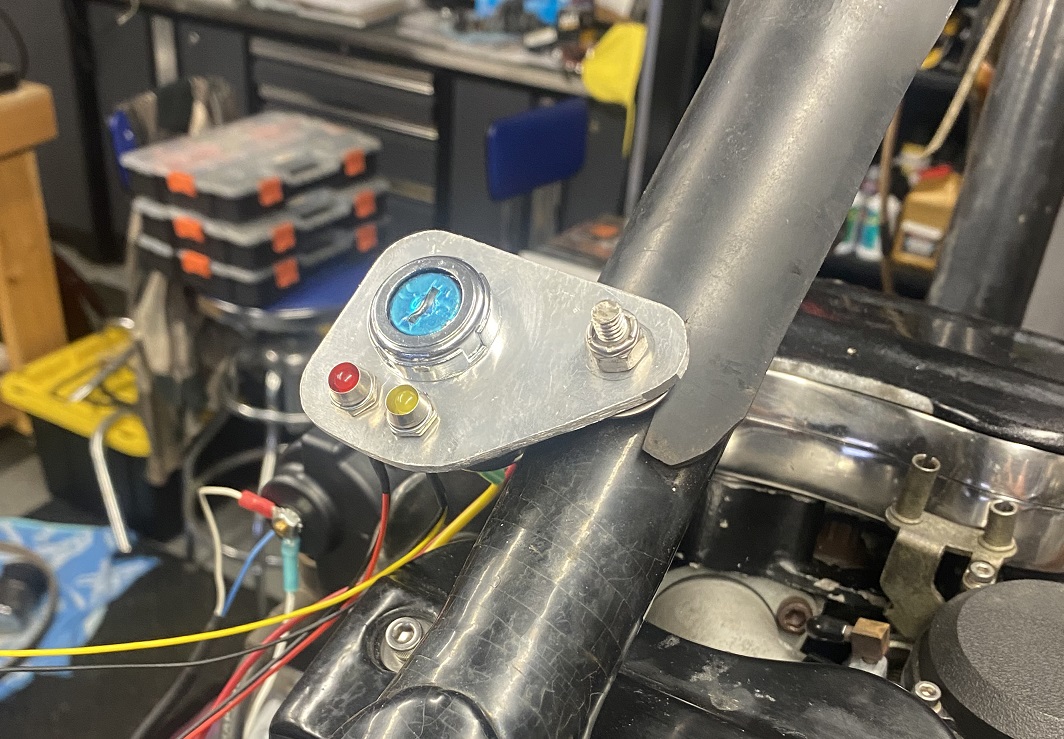

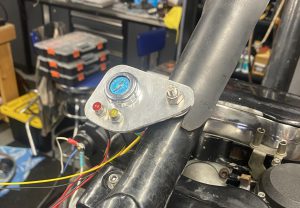

Mount with key switch and indicator lights on bike.
Has the key switch and the oil pressure and neutral light.

Just need to clean it up and polish it. Now I need to pull the oil tank and fix the mounts.
